1.Modular & Scalable
Flexible capacity expansion for different household energy needs.

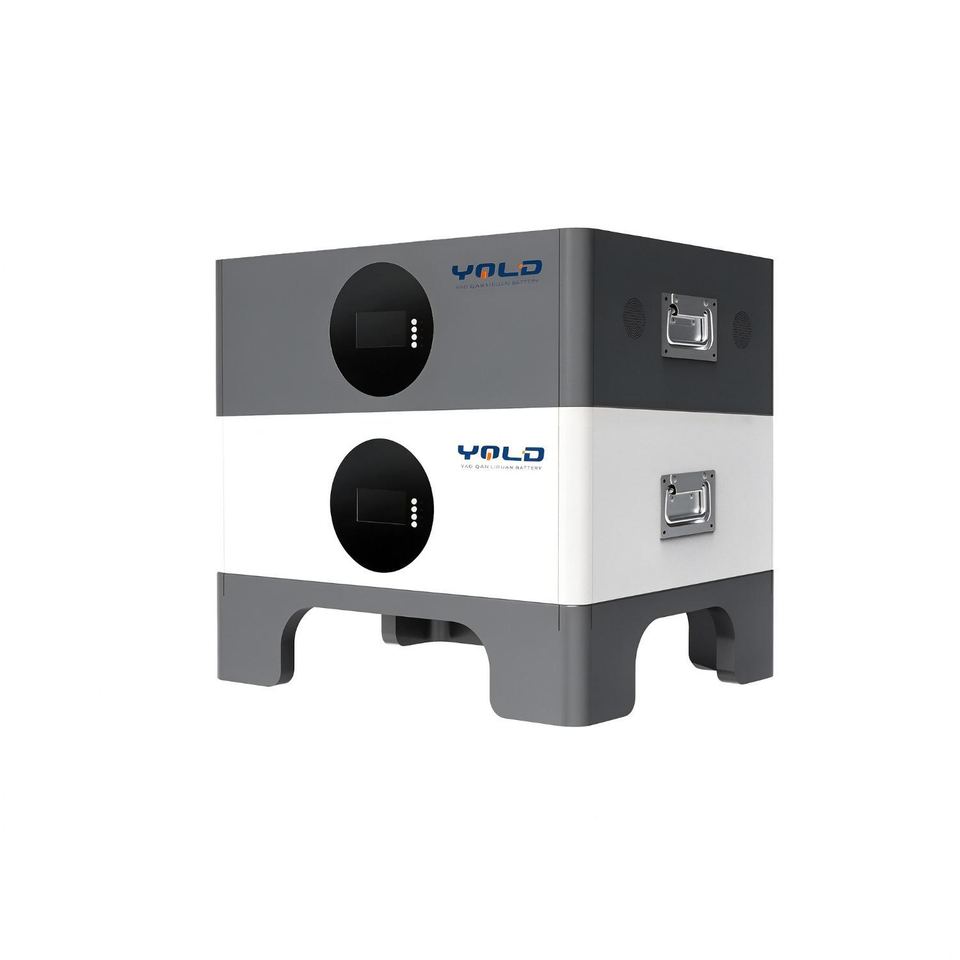

2. Space-Saving Stackable Design
Compact vertical structure for easy installation and efficient space utilization.
3. Premium LiFePO₄ Battery
Safe, stable and long-lasting battery chemistry for residential energy storage.
4. Smart BMS Protection
Intelligent monitoring and comprehensive protection for reliable operation.
5.Wide Inverter Compatibility
Easy integration with compatible mainstream inverter systems.
Items | Parameters |
|---|---|
Battery Model | IFP-51.2V100Ah |
Nominal Voltage | 51.2V |
Typical Capacity | 100Ah |
Working Current | 150A |
Peak Current | 160±5A |
Discharge Cut-off Voltage | 40V |
Charging Voltage | 58.4V |
Standard Charging Current | 150A |
Charging Mode | Constant Current / Constant Voltage (CC/CV) |
Operating Temperature (Charge) | 0℃ ~ +45℃ |
Operating Temperature (Discharge) | -20℃ ~ +60℃ |
Communication Interface | RS485 / CAN |
Enclosure Material | Metal Shell |
Waterproof Rating | IP54 |
Weight | Approx. 50±0.5 kg |
Dimensions | 500*533*453mm |
Cycle Life | ≥2000 cycles |
